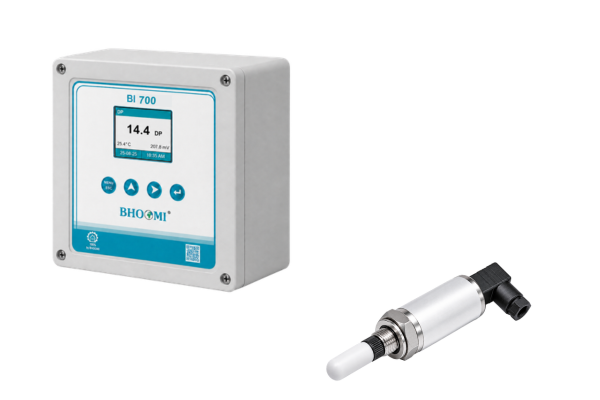

Agasthya 2026 Series Dew Point Analyzer BI 700

The Agasthya 2026 Series BI 700 Dew Point Analyzer is designed for continuous dew point monitoring in compressed air and dry industrial gases. It uses a high-performance ceramic metal oxide/aluminium oxide sensor for accurate trace-moisture measurement.

The system includes a digital controller with clear local indication and provides alarm, analogue and digital communication outputs. Its wall-mounted design supports easy integration with PLC and SCADA systems, making it suitable for monitoring dryer performance and detecting rising moisture levels in critical industrial processes.

Features

  • Continuous dew point monitoring for compressed air and dry industrial gases
  • High-performance transmitter for accurate trace-moisture measurement
  • Digital controller with clear local indication
  • Alarm, analogue and digital communication outputs
  • Monitors dryer performance and detects rising moisture levels
  • Wall-mounted design with PLC and SCADA integration
  • 2.4-inch TFT LCD
  • 4-20 mA current output
  • RS485 MODBUS RTU communication
  • IP65 dust-proof ABS enclosure
  • Optional sample conditioning unit

Specifications

  • Display
  • 2.4″ TFT LCD
  • Power Supply
  • AC: 85-305 VAC
    DC: 9-36 VDC
  • Relay Output
  • 5A-250VAC
    5A-30VDC
  • Current Output
  • 4-20 mA, 20-4 mA, 0-20 mA
  • Digital Communication
  • RS485 MODBUS RTU
  • Dimensions
  • 160 x 160 x 90 mm (ABS)
  • Mounting Type
  • Wall Mounting (ABS)
  • IP Rating
  • IP65
  • Enclosure
  • Dust Proof
  • Dew Point Range to be Analysed
  • 10°C to +20°C
  • Method of Detection / Sensor
  • Ceramic Metal Oxide / Aluminium Oxide Sensor
  • Accuracy
  • ≤ 2°C
  • Resolution
  • ≤ 0.1°C
  • Drift
  • ≤ ±0.5°C per year
  • Response Time
  • T90 ≤ 5 minutes (dry to wet)
  • Minimum Flow Requirement
  • ≤ 1.5 LPM
  • Sensor Power Supply
  • 80-230 VAC, 50 Hz
  • Sample Conditioning Unit
  • Optional

Applications

  • Compressed Air
  • Industrial Process Control
  • Drying Systems
  • Protection Systems
  • Glove Boxes
  • Turbines
  • HVAC Systems
  • Breathing-Air Monitoring
