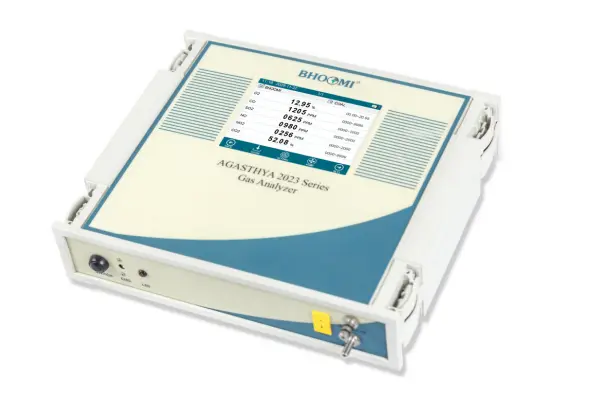

Portable Flue Gas Analyzer
Agasthya 2023 Series
BI FLEXI

Agasthya 2023 Series BI FLEXI Portable Flue Gas Analyzer is multigas analyzer capable which can measure multiple flue gases of any combination technology with temperature & flow velocity measurement simultaneously.

Easy to maintain and service from user point of view, the analyser is customisable to specific measurements and process stream conditions. A resilient stainless steel probe with thermocouple and condensate trap extracts the gas sample from stack / duct.

Agasthya 2023 Series Portable Flue Gas Analyser has long-life, eight-hour battery charge. It can be started up and ready to measure within minutes. It is supported by automatic zero calibration and continuous system diagnostics to maintain excellent analytical performance throughout its operation. Robust and lightweight, is easy to transport and use.

Features

32-bit Cortex-M3 ARM processor for high-speed data processing
Combination of sensor technologies – NDIR & Electrochemical (EC)
Automatic zeroing when the analyzer is switched ON
Fast warm-up time and quick response (T90 ≤ 30 seconds)
Built-in sample pump with flow monitor and pressure sensor
Condensate trap with reusable filters
Large, high-contrast backlit touchscreen display
Programmable units for gas concentration (ppm / mg/m³)
Stores up to 200 sets of measurement data
USB interface for charging and data communication
Rechargeable lithium-ion battery with up to 8 hours operation
Rugged, dust-proof and weather-proof enclosure
Powerful Windows-based software for data download and analysis

Specifications

Sensor Technology
Non Dispersive Infrared Absorption (NDIR), Electrochemical (EC)

Measurement Gas
- CO

  0-10000 ppm scalable
- NO

  0-5000 ppm scalable
- NO₂

  0-1000 ppm scalable
- SO₂

  0-5000 ppm scalable
- CO₂

  0-1%, 0-5%, 0-20%, 0-100% scalable
- O₂

  0-30% scalable
- H₂S

  0-500 ppm, 0-1000 ppm scalable
- NH₃

  0-500 ppm, 0-1000 ppm scalable
- HC / THC

  0-1%, 0-5%, 0-100% scalable
