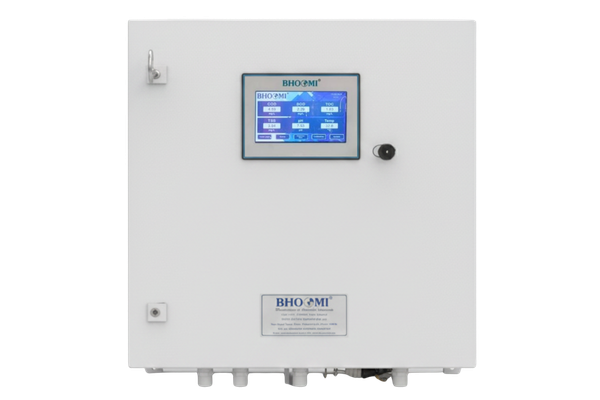

Online Continuous Effluent Monitoring System
(TUV Certified)
BI 1000

Agasthya 2021 Series Online Continuous Effluent Monitoring System (TUV Certified) BI 1000 is designed to measure different water quality parameters such as COD, BOD, TOC, TSS, pH, NH3, TN, Chlorine and Oil in Water. Continuous, real-time data collection provides immediate insights into changing water conditions. All water quality sensor is digital sensor with RS485 Modbus interface. Upto 6 parameters can be measured. Here we provide with two type of measurement Insitu Type and Extractive type.

Features

Real-time water quality measurement.
All water quality sensor are digital sensor with RS485 Modbus interface.
Digital intelligent sensor can be arbitrarily combined, plug and play, and the controller can recognized automatically.
7” touch screen display, easy to operate & interface.
Data logger function, all measured data will be recorded.
Multi-parameters water quality Analyzer is equipped with USB interface; user can download report in excel format.
Upto 9 parameters can be measured

Specifications

Technical Specification

Display

: 7” touchscreen display
Sensor Input

: RS485 Modbus
Power

: 230 VAC or 24 VDC
Digital Interface

: RS485 Modbus
Data Logging

: Through USB
Sensor IP Rating

: IP68
Controller IP Protection

: IP65
Electronic Enclosure Dimension

: 320 (L) × 270 (W) × 121 (H) mm
Cabinet Dimension

: 600 (H) × 600 (W) × 250 (D) mm

Parameters	Range	Repeatability	Accuracy	Measurement Principle
Ammonium	0–1000 mg/l	±0.2 mg/l	±2%	UV Absorption
Nitrates	0–1000 mg/l	±0.1 mg/l	±2%	UV Absorption
Nitrites	0–20 mg/l	±0.1 mg/l	±2%	UV Absorption
COD	0–2000 mg/l	±1 mg/l	±2%	Correlation UV Absorption
BOD	0–1000 mg/l	±0.5 mg/l	±2%	Correlation UV Absorption
TOC	0–1000 mg/l	±0.5 mg/l	±2%	Correlation UV Absorption
Total Nitrogen	0–100 mg/l	±1 mg/l	±2%	Photometric
Sulphides	0–2 mg/l	±0.1 mg/l	±2%	UV Absorption
TSS	0–1500 mg/l	±1% of reading or ±2 mg/l	±2%	IR Nephelometry
MLSS	0–1500 mg/l	±1% of reading or ±2 mg/l	±2%	IR Nephelometry
Turbidity	0–1000 NTU	±1 NTU	±2%	IR Nephelometry
Chlorine	0–10 mg/l	±0.1 mg/l	±2%	Electrochemical
Chlorophyll A	0–100 µg/l	±0.1 µg/l	±2%	UV Fluorescence
Oil in Water	0–100 ppm	±0.1 ppm	±2%	UV Fluorescence
PAH (Aromatics)	0–10 mg/l	±0.01 mg/l	±2%	UV Fluorescence
Dissolved Oxygen	0–25 mg/l	±0.1 mg/l	±2%	UV Fluorescence / Polarographic
Conductivity	0–2000 µS	±1 µS	±2%	Electrochemical
pH	0–14 pH	±0.01 pH	±2%	Electrochemical
ORP	±2000 mV	±1 mV	±2%	Electrochemical
Temperature	0–80°C	±0.1°C	±2%	Pt100
Mercury	0–100 µg/l	±0.1 µg/l	±2%	–
Ozone	0–10 mg/l	±0.1 mg/l	±2%	UV Absorption

Technical Specification

Display
7” touchscreen display
Sensor Input
RS485 Modbus
Power
230 VAC or 24 VDC
Digital Interface
RS485 Modbus
Data Logging
Through USB
Sensor IP Rating
IP68
Controller IP Protection
IP65
Electronic Enclosure Dimension
320 (L) × 270 (W) × 121 (H) mm
Cabinet Dimension
600 (H) × 600 (W) × 250 (D) mm

COD / BOD
Range: 0–500 mg/L, 0–1500 mg/L
Resolution: 0.01 mg/L
Accuracy: ±5%
Measurement Principle: UV Absorption
Sensor MOC: 316L (custom titanium available)

TOC
Range: 0–180 mg/L, 0–600 mg/L
Resolution: 0.01 mg/L
Accuracy: ±5%
Measurement Principle: UV Absorption
Sensor MOC: 316L (custom titanium available)

TSS
Range: 0–300 mg/L, 0–500 mg/L
Resolution: 0.01 mg/L
Accuracy: ±5%
Measurement Principle: IR Nephelometry
Sensor MOC: 316L
